Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Turnlife
  • Model Number: YE270
  • Composed Type: Other
  • Type: Li-Ion
  • Components: Samsung 18650 cell
  • Size: 95(L)*91(W)*386(H)mm
  • Voltage: 36V
  • Weight: 2.5KG
  • Nominal Capacity: 10.4Ah
  • Application: Electric bike,E-scooter etc
  • Cycle Life: ≥1000 times
  • Certificates: RoSH,CE,UN38.3, MSDS
  • Warranty: 24 months
  • Nominal Voltage: 36V/24V

Packaging & Delivery

Packaging Details Carton Box or Custom Packaging
Delivery Time 20 working days after payment

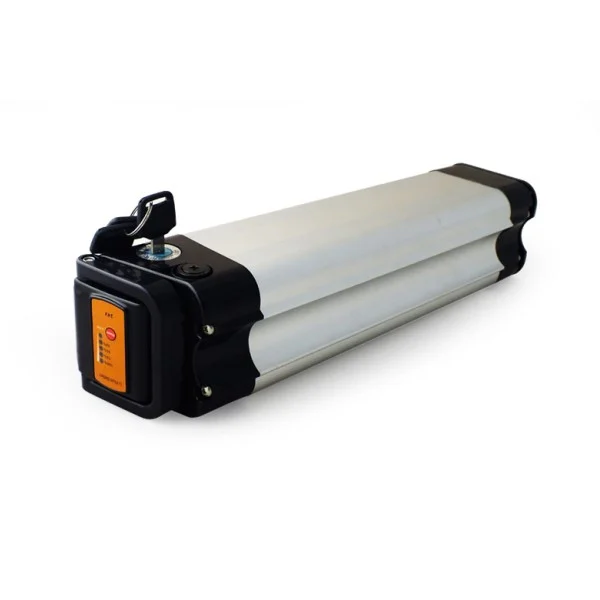

36V 10.4Ah Prophete e-bike battery pack

Product Description



ModelYE270
Cell TypeLi-Ion battery
Nominal Voltage36V/24V
Rated Capacity10.4Ah (0.5C2A discharge)
Internal Resistance≤190mΩ (AC1kHz AC impedence)
WeightAbout 5KG
Dimension95(L)*91(W)*386(H)mm
Charge&Discharge ModeCC&CV
Cycle Life≥1000 times
Battery Hopower Retention
(power strorage:one month)
≥98%
CertificationRoSH,CE,UN38.3,MSDS
Warranty24 months
ApplicaitonElectric bike,E-scooter etc
ChargeStandard Charge Current2A
Max Charge Current3.5A
Max Charge Voltage42V
DischargeStandard Discharge Current5A
Max Discharge Current20A
Discharge Cut-off Voltage28V
PCB
parameters
Overcharge Protection Voltage4.25±0.03V
Over-discharge Voltage Protection2.5±0.1V
Over-current Protection Current≥40A
 Over-current Protection Delay< 15 ms
Working
Temp.
Charge Temp.0~45°C
Discharge Temp.-20~55°C



Our Services

1. 24 months warranty after ETA;

2. Offices in NL and CA to offer service for customers oversea; 2 factories, in Shenzhen and Anhui to ensure capacity and in time delivery;

3.OEM  and ODM are welcome.



Packaging & Shipping

Packing: Brown Carton

Delivery:  20 to 35 days after deposit, depends on season and qty;

Shipping: FOB, CIF,DDU or DDP service are available.

Payment terms: 30% deposit, balance before shipping.



FAQ

1. Q:How long can your battery last?

    A:Normally it can last at least 2 years, depends on how you use it.



2. Q:Do you have certisfications to ship  your batteries?

    A: Yes, of course. we have UN38.3 ,MSDS and air/sea shipping report for most of our batteries.



3.Q:If there is something wrong with my battery, how soon can i get it fixed?

    A:You can contact  the seller directly, or if you are buying from Turnlife directly, you can contact us directly, we will act in one week to get your issue sorted.



4. Q:Do you have after-sales service center somewhere outside China?

    A:Yes, we do. We have office in both NL and USA to service our clients.



5.Q: Can i be your agent?

   A: Yes,  welcome to join Turnlife family.



6. Q: How can i be in touch with you?

    A: There is contact info on our website, or you can contact us with below access:

       Oversea: Kary,  +86-755 2988 5040;+86-181 8861 8102; +31 0 633337 9688

       China mainland: Stevan, +86-138 2352 5920; +86-755-2988 5030#8008
